PACKOUT Modular Storage System
3049-22

M12 FUEL™ 3/8" Subcompact Impact Wrench w/ Friction Ring Kit

Share

Tool Options

3049-22M12 FUEL™ 3/8" Subcompact Impact Wrench w/ Friction Ring Kit

This product is COMING SOON!

Sign up so we can let you know when it’s available.

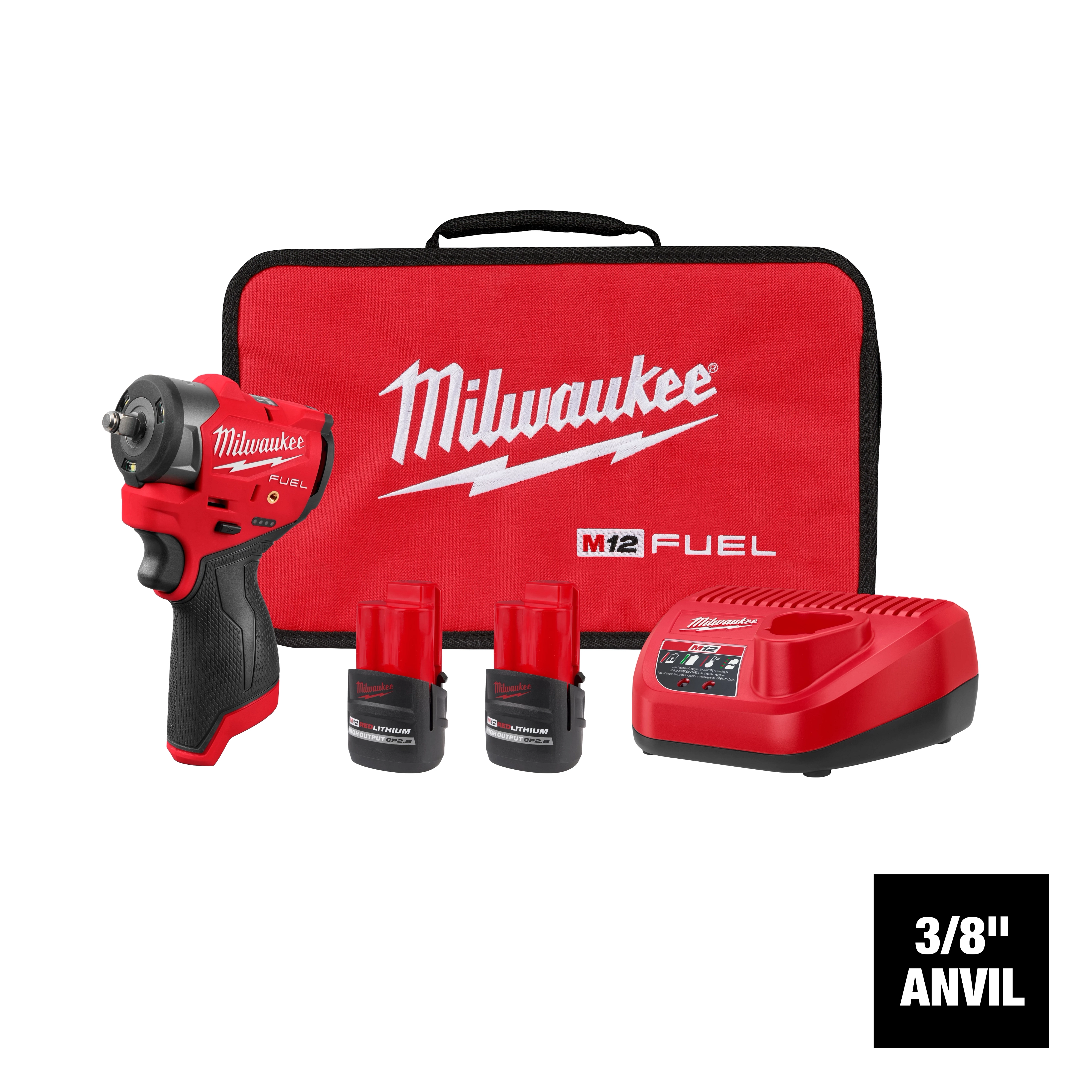

In The Box (6)

(1)
M12 FUEL™ 3/8" Subcompact Impact Wrench w/ Friction Ring
(2)
M12™ REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery Pack
(1)
M12™ Lithium-ion Battery Charger
(1)
Belt Clip
(1)
Contractor Bag

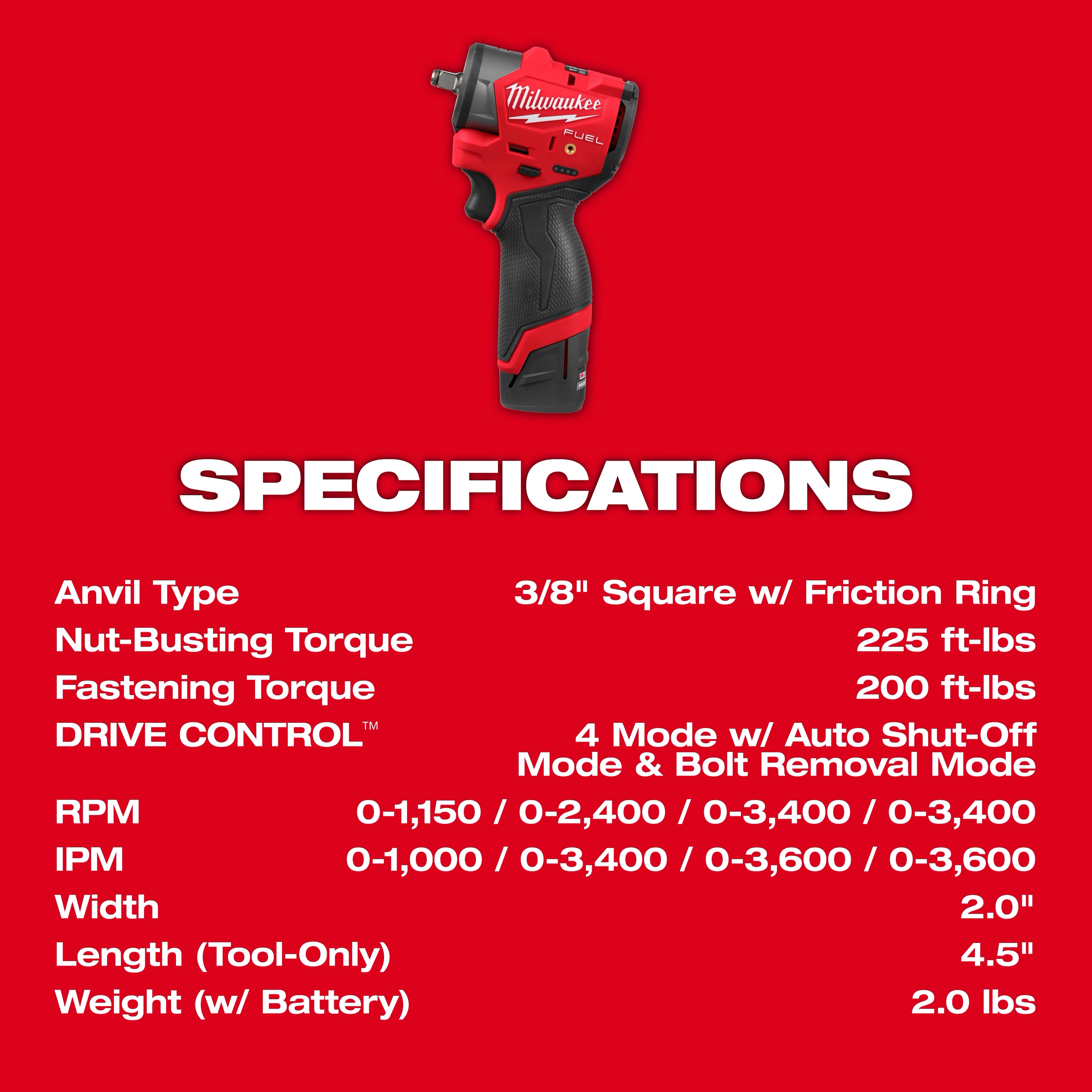

Specs

Battery System
M12™
M12
Motor Type
POWERSTATE™ Brushless
POWERSTATE Brushless
Anvil Size
3/8 in
-
Anvil Type
Friction Ring
Friction Ring
Nut-Busting Torque
-
550 ft-lbs
Fastening Torque
-
400 ft/lbs
RPM Range
0 - 3400 RPM
-
IPM Range
0 - 3,600 IPM
-
DRIVE CONTROL
-
4-Mode
Length
4.5 in
-
Weight Excluding Battery
1.6 lb
-
ONE-KEY™ Enabled
No
-
Warranty
5 Year Limited Warranty Charger, 3 Year Limited Warranty Battery
-

Product Overview

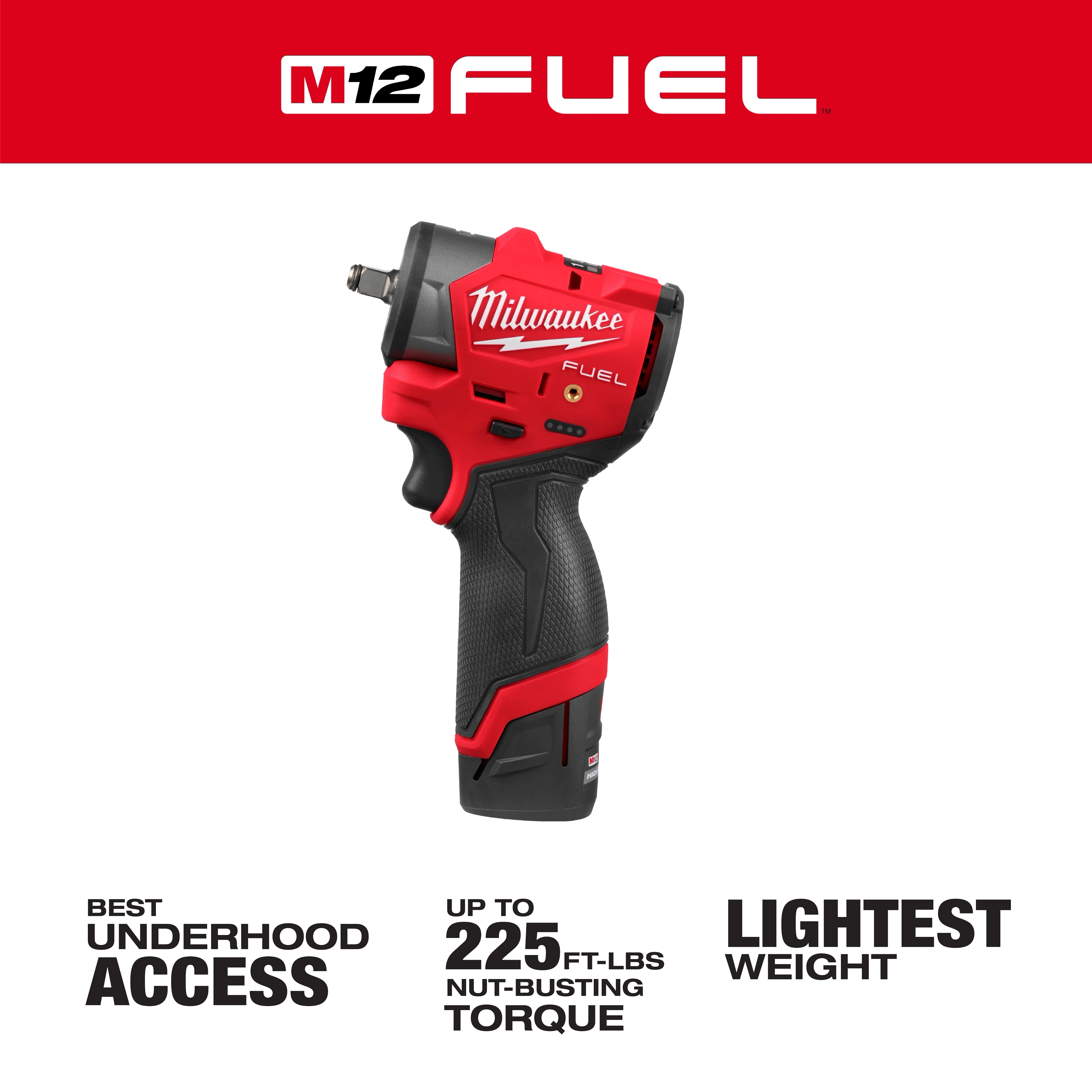

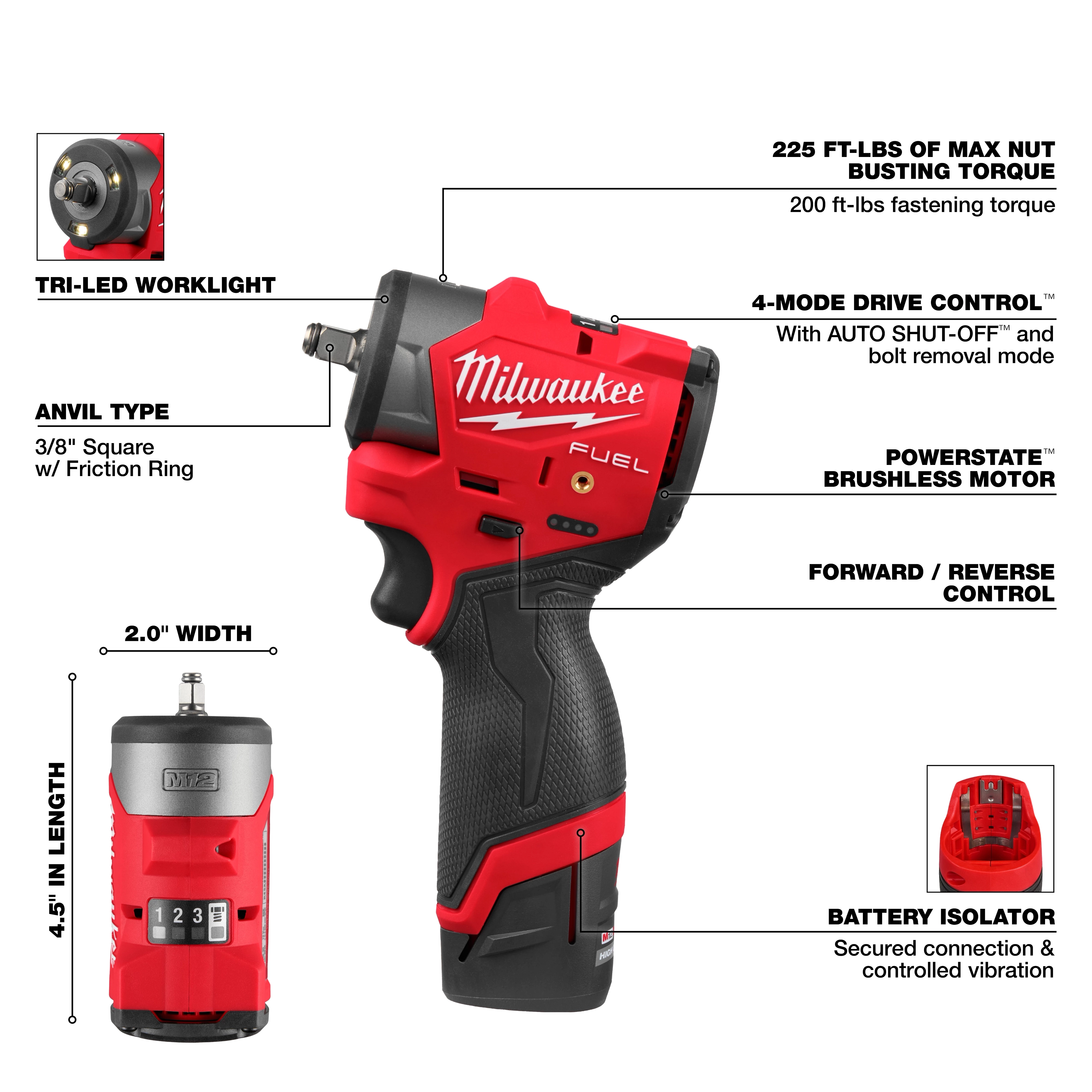

Our M12 FUEL™ 3/8” Subcompact Impact Wrench with Friction Ring Kit delivers the Best Underhood Access for all automotive applications. Measuring 4.5” in length and 2.0” in width, this Subcompact Impact Wrench fits into the tightest spots, minimizing the time spent on removing additional components under the hood. The M12 FUEL™ Subcompact Impact Wrench delivers up to 225 ft-lbs of nut-busting torque when paired with our M12™ REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery Pack while providing up to 30% faster application speeds, maximizing productivity in the shop. This solution excels in both performance and size. Weighing only 1.6 lbs as a bare tool, it is the Lightest Weight in its class, reducing fatigue throughout the workday and fitting into the tightest spaces without additional extensions, swivels, or adapters. Equipped with a Tri-LED work light, it illuminates your work area without casting shadows. The tool has a variable speed trigger with 4-Mode DRIVE CONTROL™, which offers greater precision and customization of power output, including AUTO SHUT-OFF™ that limits torque to 15 ft-lbs for hand-tight applications, preventing overtightening in forward mode. In reverse, the bolt removal mode slows down RPM once the bolt is free, preventing fastener drops in your workspace. Mode changes are effortless with single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you can easily switch modes.

  • Best Underhood Access

  • Up to 225 ft-lbs of Nut-Busting Torque

  • Lightest Weight

  • 40% Faster Application Speeds

  • Mode 1 RPM: 0-1,150; Mode 2 RPM: 0-2,400; Mode 3 RPM: 0-3,400; Mode 4 RPM: FWD: 0-1,600, REV: 0-3,400 / 0-1,500

  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows

  • Variable speed trigger for precise control

  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode

  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.

  • Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories

  • Compatible with all M12™ batteries & Chargers

  • Single-handed mode changes for increased productivity

  • Mode 1 IPM: 0 - 1,000; Mode 2 IPM: 0 - 3,400; Mode 3 IPM: 0 - 3,600; Mode 4 IPM: 0 - 3,600
