SEWER DRUM MACHINE w/ POWERTREDZ™

MXF501-1CP

Learn More About the MX FUEL™ Equipment System
Also Available:

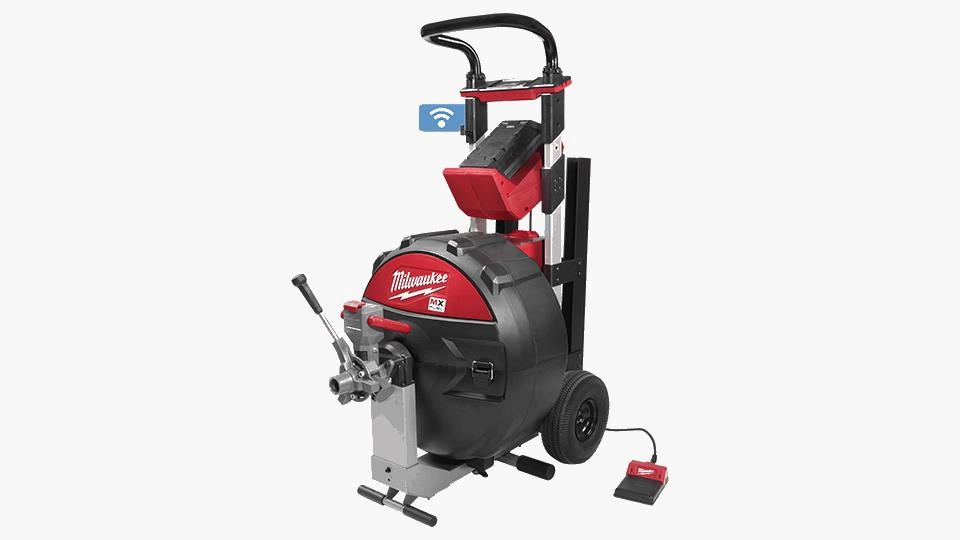

MX FUEL™ Sewer Drum Machine MXF500-1CP

MX FUEL™ Sewer Drum Machine w/ POWERTREDZ™ for 5/8“ - ¾“ Cable

SEWER CALLS SIMPLIFIED

Our MX FUEL™ Sewer Drum Machine with POWERTREDZ™ simplifies sewer calls by providing POWERTREDZ™ Lift Assist technology and the power to clear roots while containing the mess with a fully closed drum. POWERTREDZ™ Lift Assist technology allows you to perform one-person transportation of the machine up and down stairs as well as in and out of a service van. The POWERSTATE™ Brushless Motor gives you the power to clear roots in 3"-8” sewer lateral lines. This provides you with full power at the maximum capacity of the machine. The drum holds 100’ of 5/8” or ¾” inner core cable and is fully enclosed providing you with the best protection against the mess. Add additional cable or connect to a second machine to reach out to 200’. The sewer machine features CABLE DRIVE™ Automatic Feed & Retract, which reduces your fatigue by eliminating the need to pull back the cable from the pipe. The RAPID STOP™ button quickly releases the CABLE DRIVE™ bearings to prevent the cable from binding. REDLINK PLUS™ intelligence improves your control with an integrated drum brake, slowing the power sewer machine faster than competitor drums. The MX FUEL™ REDLITHIUM™ battery pack allows you to power through multiple jobs on a single charge, delivering cordless mobility, safety, and power supply to the drain cleaning industry. It is compatible with all MILWAUKEE® MX FUEL™ REDLITHIUM™ batteries giving you the hardest working and most reliable power for equipment. The sewer drum machine is ONE-KEY™ Compatible. You can track, manage and secure your equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If the sewer machine is lost or stolen you can prevent tampering with remote lockout capability.

POWERTREDZ™ LIFT ASSIST
POWER TO CLEAR ROOTS AT 200'

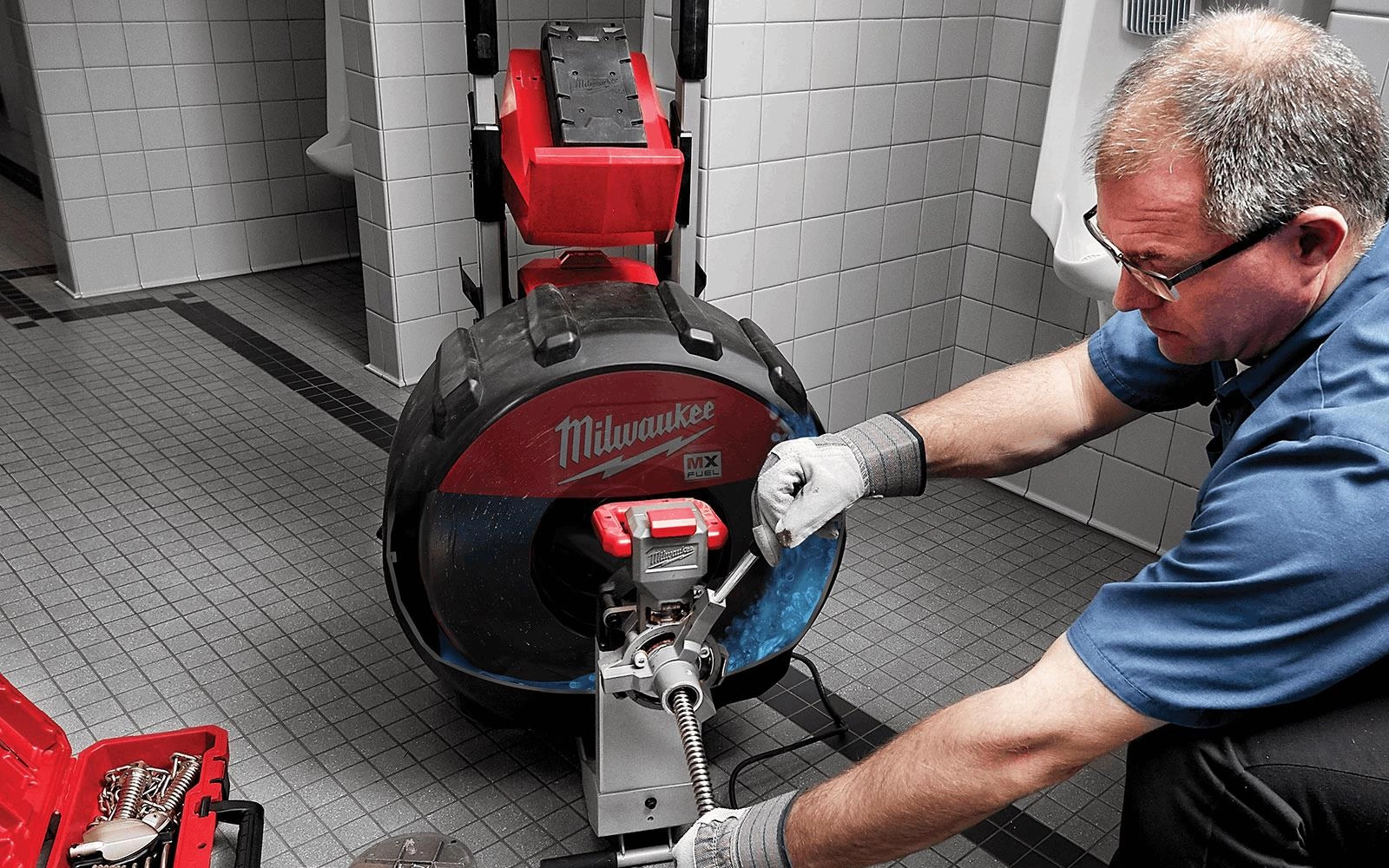

MESS CONTAINED
MX FUEL™
REDLITHIUM™
CP203 BATTERY
POWERS THROUGH MULTIPLE JOBS ON A SINGLE CHARGE
MX FUEL™
REDLITHIUM™
CP203 BATTERY
POWERS THROUGH MULTIPLE JOBS ON A SINGLE CHARGE
MX Fuel™ Technology
1
2
3
Click a Number for Details
Specifications

    POWERTREDZ™ Lift Assist

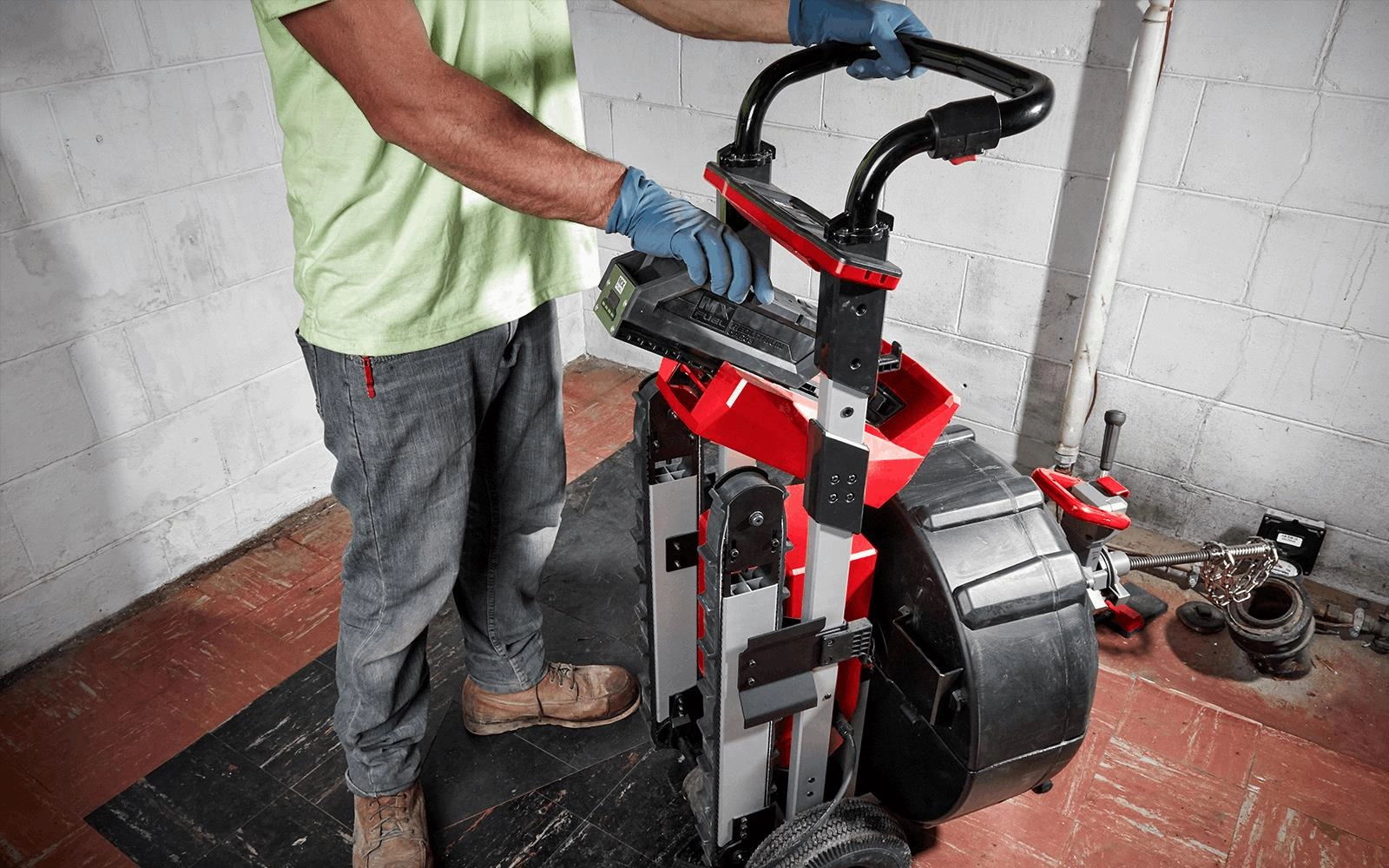

    POWERTREDZ™ Lift Assist Technology allows for one-person transportation in and out of a service van and up and down stairs

    CABLE DRIVE™

    Automatically feeds and retracts the cable.

    RAPID STOP™

    Release of CABLE DRIVE™ bearings to quickly stop cable from feeding or retracting.

    Enclosed Drum

    Provides the best protection against spinning components and contains the mess.

    ONE-KEY™ Compatible

    Track, manage and secure equipment from your mobile device or computer using the industry’s largest Bluetooth® community tracking network. If ever lost or stolen, prevent tampering with remote lockout capability.

    Battery Type
    Lithium-Ion
    Length
    32.5 in
    Weight
    119 lb
    Height
    47 in
    Width
    22 in
    Depth
    32.5 in
    Battery System
    MX FUEL™
    Drain Line Capacity
    200'
    Recommended Pipe Sizes
    3 - 6"
    Max Pipe Size
    8'
    Cable Capacity
    5/8" & 3/4"
    Feed Type
    Manual or Automatic
    Cable Spin Speed
    200 RPM
    Equipment Warranty
    2 Year
    Battery Warranty
    2 Year
    Drum Capacity
    100ft of 5/8” or 3/4”
    Charge Time
    45 Minutes
    ONE KEY Compatible
    Yes
    Includes
    (1) MX FUEL™ Sewer Drum Machine w/ POWERTREDZ™ for 5/8“ - ¾“ (1) MX FUEL™ REDLITHIUM™ CP203 Battery Pack (MXFCP203) (1) MX FUEL™ CHARGER (MXFC)
